Linea Pro 5

A handheld 1D/2D barcode scanner designed for iPhone 5 and iPod touch

iPhone 5 iPhone 5S iPhone SE iPod touch 5 iPod touch 6 iPod touch 7
MSR RFID 1D Scan 2D Scan

The Linea Pro 5 is a reliable, handheld data capture device with a built-in high-speed barcode scanner. Improve your workflow with a Magnetic Stripe Reader (MSR) and optional RFID. Connect and integrate with your existing system with Bluetooth capabilities and intuitive SDK.

  • Designed for iPhone 5 and iPod Touch
  • 1D/2D barcode scanner reads barcodes in any direction
  • Magnetic Stripe Reader (MSR)
  • Bluetooth-enabled
  • Intuitive SDK for software integration
Barcode scanner

Improve data capture visibility

Inventory control and asset management

Manage inventory and asset tracking

Age verification and loyalty cards

Swipe loyalty or identification cards

Pistol grip

Connect with Pistol Grip accessory for scanning mobility

Linea Pro 5 Specifications

Features

STANDARD FEATURES

Li-ion Battery, Lightning Connector, Encrypted MSR

OPTIONAL FEATURES

1D Barcode Laser , 2D Barcode Imager, SRED Capable MSR, RFID, Bluetooth (SPP/iAP)

Electrical

BARCODE SCANNER

1D/2D Scanner

CERTIFICATIONS

- PCI PTS 3.x SRED compliant - DUKPT and Fixed Key Management - 3DES-112, AES-128, AES-256 encryption algorithms

Mechanical

COMPATIBILITY

iPhone 5, iPhone 5S, iPhone SE, iPod touch 5, iPod touch 6, and iPod touch 7

DIMENSIONS

142mm x 69 mm x 22mm 5.6 in x 2.7 in x .9 in (L x W x H)

Additional Downloads

Linea Pro 5 Specifications Sheet Icon

Linea Pro 5 Specifications Sheet

Download Download specifications sheet arrow
Linea Pro 5 Quick Start Guide Icon

Linea Pro 5 Quick Start Guide

Download Download quick start guide arrow
Linea Pro 5 User Manual Icon

Linea Pro 5 User Manual

Download Download user manual arrow
Linea Pro 5 Quick Start Guide Icon

Charging Cup Quick Start Guide

Download Download quick start guide arrow
Linea Pro 5 Quick Start Guide Icon

Pistol Grip Quick Start Guide

Download Download quick start guide arrow
Linea Pro 5 Quick Start Guide Icon

1 Unit Pistol Grip Charging Station Quick Start Guide

Download Download quick start guide arrow
Linea Pro 5 Quick Start Guide Icon

4 Unit Pistol Grip Charging Station Quick Start Guide

Download Download quick start guide arrow

Accessories for Linea Pro 5

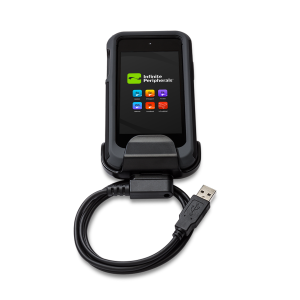

Charging Cup

Charging Cup

A simple way to charge both the iPhone and the Linea Pro 5. The charger can be used in-store, in-vehicle, in-air, or on the go.

Contact Sales

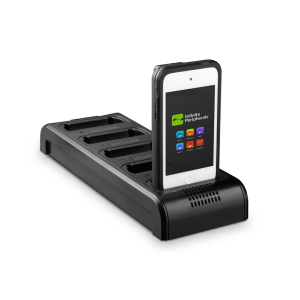

5 Unit Charging Station

5 Unit Charging Station

Charge up to five devices in a single charging station. Includes LED indicators for charge status.

Contact Sales

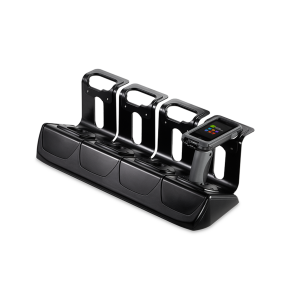

4 Unit Pistol Grip Charging Station

4 Unit Pistol Grip Charging Station

Charge up to four pistol grips with this charging station for Linea Pro 5 pistol grip.

Contact Sales

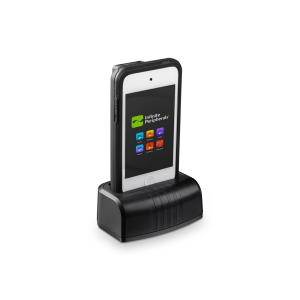

1 Unit Charging Station

1 Unit Charging Station

A single station upright charging unit for Linea Pro 5. Includes LED indicators for charge status.

Contact Sales

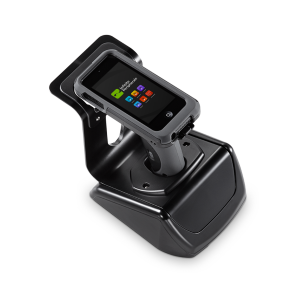

1 Unit Pistol Grip Charging Station

1 Unit Pistol Grip Charging Station

Ensure your pistol grip is always charged and ready to go with this single unit charging station.

Contact Sales
Holster

Holster

Store and protect the Linea Pro 5 with a belt holster when you're on the go for increased mobility.

Contact Sales

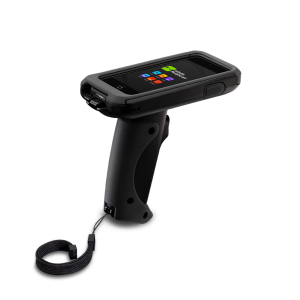

Pistol Grip

Pistol Grip

This snap-on handle adapts the Linea Pro 5 into an easily maneuverable, one-handed barcode scanner.

Contact Sales
