Infinite Peripherals Infinea Tab M iPhone Plus with MSR, RFID, and  1D/2D barcode scanning

Infinea Tab M for iPhone Plus

Infinea Tab M for iPhone Plus

A 1D/2D barcode scanner and Magnetic Stripe Reader (MSR) designed for operational visibility on the iPhone Plus

iPhone 6 Plus iPhone 6S Plus iPhone 7 Plus iPhone 8 Plus
MSR RFID 1D Scan 2D Scan

The Infinea Tab M turns your iPhone Plus into a versatile payment and scanning device. With Bluetooth-enabled connectivity and intuitive SDK, the Infinea Tab M is customizable based on your existing workflow.

  • Promotes visibility on 5.5” iPhone Plus Retina HD display
  • 1D/2D barcode scanner reads QR and barcodes in print and on screen (LCD)
  • Bi-directional, 3-track Magnetic Stripe Reader (MSR)
  • Optional RFID
  • Intuitive SDK for software integration
item.alt

Accept on-board retail payments

item.alt

Swipe loyalty or identification cards

item.alt

Inventory and price checking

item.alt

Improve inventory management and line busting

item.alt

Integrate with existing infrastructure for complete visibility and customization

Infinea Tab M iPhone Plus Specifications

Payment Features

NFC PAYMENTS

ISO/IEC 14443 Type A/MIFAREMIFARE MINI MIFARE CLASSIC-1K, MIFARE CLASSIC-4K MIFARE ULTRALIGHT, ULTRALIGHT-C MIFARE PLUS 2K/4K, DESFire card, ISO/IEC 14443 Type B, ISO/IEC 15693, AMEX ExpressPay MagStripe and EMV

MAGNETIC CARD READER

3-track bi-directional reading ISO 7810, 7811, and 7813

Electrical

BATTERY CAPACITY

1100mAh

ENCRYPTION & KEY MANAGEMENT

3DES-112 with DUKPT key management AES-128 with Fixed or DUKPT key management AES-256 with Fixed key management

Mechanical

COMPATIBILITY

iPhone 6 Plus, iPhone 6S Plus, iPhone 7 Plus, and iPhone 8 Plus

DIMENSIONS

103mm x 88mm x 24mm 4" X 3.5" X .9" (L x W x H)

Additional Downloads

Infinea Tab M for iPhone Plus Specifications Sheet Icon

Infinea Tab M for iPhone Plus Specifications Sheet

Download Download specifications sheet arrow
Infinea Tab M for iPhone Plus Quick Start Guide Icon

Infinea Tab M for iPhone Plus Quick Start Guide

Download Download quick start guide arrow
Infinea Tab M for iPhone Plus Quick Start Guide Icon

1 Unit Charging Station Quick Start Guide

Download Download quick start guide arrow
Infinea Tab M for iPhone Plus Quick Start Guide Icon

5 Unit Charging Station Quick Start Guide

Download Download quick start guide arrow

Accessories for Infinea Tab M for iPhone Plus

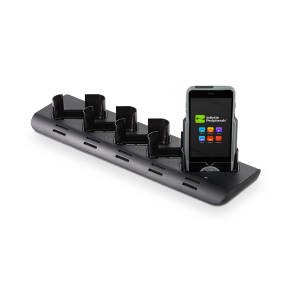

5 Unit Charging Station

5 Unit Charging Station

Charge up to five devices in a single charging station. Includes LED indicators for charge status.

Contact Sales

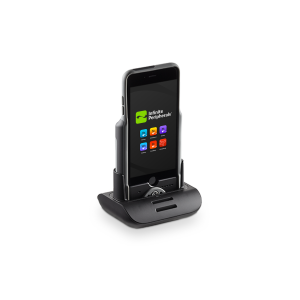

1 Unit Charging Station

1 Unit Charging Station

A single station upright charging unit for Infinea Tab M. Includes LED indicators for charge status.

Contact Sales
Flex Case

Flex Case

Protect your device and increase mobility. Flex Case for Infinea Tab M features customizable protextive case with adjustable handgrip.
