Infinea Tab M for iPad Mini

A 1D/2D barcode scanner and magnetic card reader designed for operational visibility on the iPad Mini

iPad Mini iPad Mini 2 iPad Mini 3 iPad Mini 4 iPad Mini 5
MSR RFID 1D Scan 2D Scan

The Infinea Tab M turns your iPad Mini into a versatile payment and scanning device. With Bluetooth-enabled connectivity and intuitive SDK, the Infinea Tab M is customizable based on your existing workflow.

  • Promotes visibility on 7.9” iPad Mini Retina display
  • 1D/2D barcode scanner reads QR and barcodes in print and on screen (LCD).
  • Bi-directional, 3-track Magnetic Stripe Reader (MSR)
  • Optional RFID
  • Intuitive SDK for software integration
Mobile payments

Accept on-board retail payments

Age verification and loyalty cards

Swipe loyalty or identification cards

Inventory control and asset tracking

Inventory and price checking

Line busting

Expedite check-in/check-out

Kiosk

Use as a kiosk, countertop, or mobile terminal

Infinea Tab M iPad Mini Specifications

Payment Features

NFC PAYMENTS

ISO/IEC 14443 Type A/MIFAREMIFARE MINI MIFARE CLASSIC-1K, MIFARE CLASSIC-4K MIFARE ULTRALIGHT, ULTRALIGHT-C MIFARE PLUS 2K/4K, DESFire card, ISO/IEC 14443 Type B, ISO/IEC 15693, AMEX ExpressPay MagStripe and EMV

MAGNETIC CARD READER

3-track bi-directional reading ISO 7810, 7811, and 7813

Electrical

BATTERY CAPACITY

1100mAh

ENCRYPTION & KEY MANAGEMENT

3DES-112 with DUKPT key management AES-128 with Fixed or DUKPT key management AES-256 with Fixed key management

Mechanical

COMPATIBILITY

iPad Mini 1-5

DIMENSIONS

103mm x 88mm x 24mm 4" X 3.5" X .9" (L x W x H)

Additional Downloads

Infinea Tab M for iPad Mini Specifications Sheet Icon

Infinea Tab M for iPad Mini Specifications Sheet

Download Download specifications sheet arrow
Infinea Tab M for iPad Mini Quick Start Guide Icon

Infinea Tab M for iPad Mini Quick Start Guide

Download Download quick start guide arrow

Accessories for Infinea Tab M for iPad Mini

Flex Case

Flex Case

Protect your device and increase mobility. Flex Case for Infinea Tab M features customizable protective case with adjustable handgrip.

Contact Sales

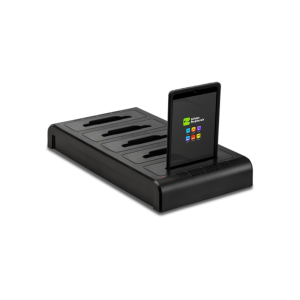

5 Unit Charging Station

5 Unit Charging Station

Charge up to five devices in a single charging station. Includes LED indicators for charge status.

Contact Sales

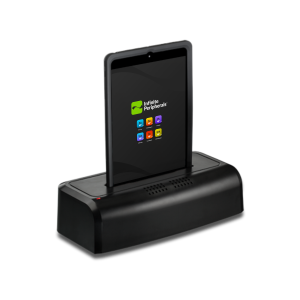

1 Unit Charging Station

1 Unit Charging Station

A single station upright charging unit for Infinea Tab M. Includes LED indicators for charge status.

Contact Sales

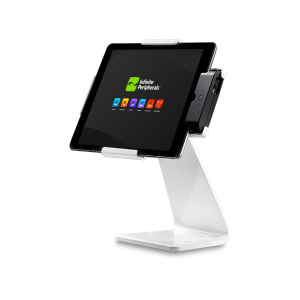

Secure Stand

Secure Stand

A desktop mounting stand with rotating head. Stand holds the Infinea Tab M tightly for added security.

Contact Sales
