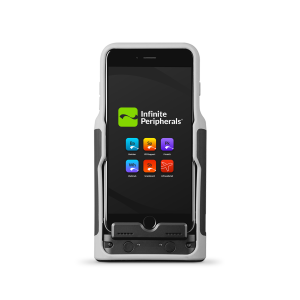

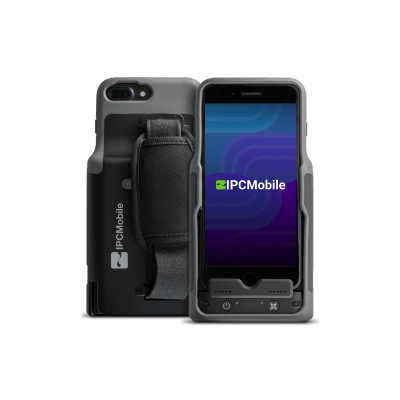

Infinea Tab C for iPhone Plus

A 1D/2D barcode scanner and EMV certified smart card reader designed for iPhone Plus

iPhone 6 Plus iPhone 6S Plus iPhone 7 Plus iPhone 8 Plus
EMV Chip MSR NFC 1D Scan 2D Scan

The Infinea Tab C turns your iPhone Plus into a secure payment terminal with EMV certified smart card reader plus 1D/2D barcode scanner. With Bluetooth-enabled connectivity and intuitive SDK, the Infinea Tab C is customizable based on your existing workflow.

  • Promotes visibility on 5.5” iPhone Plus Retina HD display
  • Mobile payment options including bidirectional Magnetic Stripe Reader (MSR), EMV (Chip), and optional Near Field Communication (NFC) functions including Apple Pay and Samsung Pay
  • 1D/2D barcode scanner reads barcodes in any direction
  • Intuitive SDK for software integration
Contactless payment

Accept a variety of payments anywhere, anytime

Mobile payments

Pay at the table

Inventory control and asset tracking

Inventory and price checking

Barcode scanning and ticket admissions

Ticket scanning and admission

Line busting

Expedite check-in/check-out

Infinea Tab C iPhone Plus Specifications

Payment Features

NFC PAYMENTS

VISA, MasterCard, American Express, Discover MiFARE Mini MiFARE Classic 1K / 4K MiFARE Ultra-Light / Ultra-Light-C MiFARE Plus 2K / 4K ISO / IEC 14443 A&B ISO / IEC 15693 DESFire, FeliCa

CARD READER

3-track bi-directional reading capabilities

Electrical

BATTERY CAPACITY

2330mAh

ENCRYPTION & KEY MANAGEMENT

3DES-112, AES 128/256, DUKPT

Mechanical

COMPATIBILITY

iPhone 6 Plus, iPhone 6S Plus, iPhone 7 Plus, and iPhone 8 Plus

DIMENSIONS

112.4mm x 88mm x 27mm 4.4” X 3.5” X 1.06” without iOS Device (L x W x H)

Additional Downloads

Infinea Tab C for iPhone Plus Specifications Sheet Icon

Infinea Tab C for iPhone Plus Specifications Sheet

Download Download specifications sheet arrow
Infinea Tab C for iPhone Plus Quick Start Guide Icon

Infinea Tab C for iPhone Plus Quick Start Guide

Download Download quick start guide arrow
Infinea Tab C for iPhone Plus User Manual Icon

Infinea Tab C for iPhone Plus User Manual

Download Download user manual arrow

Accessories for Infinea Tab C for iPhone Plus

No accessories available at this time, please check back soon.
